스테레오앰프
Compare

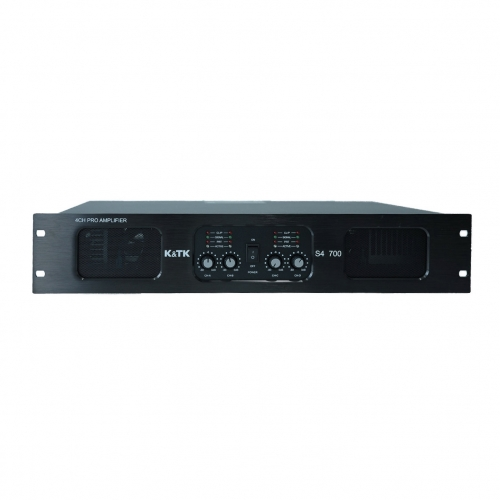

S4-700
Availability:
999개 재고
- 8Ω/EIA/1kHz/0.1%THD: 250W
- 4ch Mode (4Ω/EIA/1kHz/0.1%THD): 420W
- 2Ω/EIA/1kHz/0.1%THD: 700W
- Bridge Mode (8Ω/EIA/1kHz/0.1%THD): 840W
- Total Harmonic Distortion (THD) 8Ω (1kHz): 0.001%
- Total Harmonic Distortion (THD) 4Ω (1kHz, 1/8W output): 0.002%
- Frequency Response (8Ω, 1W): 20Hz ~ 50kHz (±0.5dB)
- Signal to Noise (20Hz~20kHz): >-105dB
- Damping Factor (8Ω @ 20Hz~1kHz): >-3000:1
- Damping Factor (8Ω @ 10kHz): >-2000:1
- Input Impedance: 20k Ohms, Balance
- Output Circuitry: Class-A/B
- Cooling: 2 variable speed DC FAN
- Controls: Front panel attenuator, Rear panel mode & Gain switches
- Protection: Thermal, Turn-on bursts, Load protected against DC faults, Short circuit

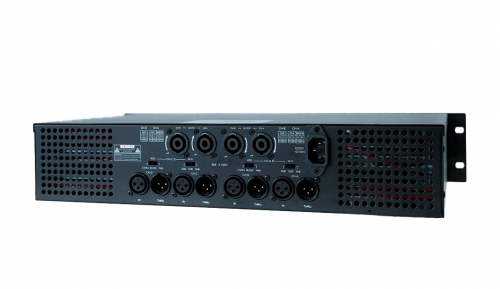

- Connectors: Female XLR, Male XLR, Power-10A IEC Mains
- Dimensions (H*W*D): 3.5″(2RU) x 19″ x 9.9″ (88mm x 483mm x 253mm)
- Weight: Net/Shipping: 6.9kg / 7.9kg
₩1,650,000
999개 재고
Based on 0 reviews
Be the first to review “S4-700”
General Enquiries
There are no enquiries yet.
연관 상품
-
스테레오앰프
DMP-700
- Stereo Mode: 8Ω (EIA/1kHz): 500W, 4Ω (EIA/1kHz): 700W (0.1% THD)
- Bridge Mode: 8Ω (EIA/1kHz): 1400W (0.1% THD)
- Total Harmonic Distortion (THD): 8Ω (1kHz, 50W): 0.0002%, 4Ω (1kHz, 100W): 0.003%
- Frequency Response: 20Hz ~ 50kHz (±0.5)
- Signal to Noise: >-105dB (20Hz ~ 20kHz)
- Damping Factor: 8Ω @ 20Hz~1kHz: >6000:1, 8Ω @ 10kHz: >1500:1
- Input Impedance: 20k Ohms, Balance
- Output Circuitry: 2-tier Class-H
- Cooling: 2 Variable speed DC FAN
- Controls: Front panel attenuator, Rear panel mode & Gain Switches
- Protection: Thermal, Turn-on bursts, Load protected against DC faults, Short circuit
- Connectors: Combination jack with 3 poles Female XLR socket + 1/4″ phone jack, Male XLR, Power-10A IEC Mains
- Dimensions (H x W x D): 3.5″(2RU) x 19″ x 11.3″ (88mm x 483mm x 288mm)
- Weight-Net / Shipping: 13kg / 14.5kg
SKU: n/a -
스테레오앰프
DMP-350
- Stereo Mode: 8Ω (EIA/1kHz): 250W, 4Ω (EIA/1kHz): 350W (0.1% THD)
- Bridge Mode: 8Ω (EIA/1kHz): 700W (0.1% THD)
- Total Harmonic Distortion (THD): 8Ω (1kHz, 50W): 0.0007%, 4Ω (1kHz, 100W): 0.001%
- Frequency Response: 20Hz ~ 50kHz (±0.5)
- Signal to Noise: >-105dB (20Hz ~ 20kHz)
- Damping Factor: 8Ω @ 20Hz~1kHz: >6000:1, 8Ω @ 10kHz: >1500:1
- Input Impedance: 20k Ohms, Balance
- Output Circuitry: Class-A/B
- Cooling: 2 Variable speed DC FAN
- Controls: Front panel attenuator, Rear panel mode & Gain Switches
- Protection: Thermal, Turn-on bursts, Load protected against DC faults, Short circuit
- Connectors: Combination jack with 3 poles Female XLR socket + 1/4″ phone jack, Male XLR, Power-10A IEC Mains
- Dimensions (H x W x D): 3.5″(2RU) x 19″ x 11.3″ (88mm x 483mm x 288mm)
- Weight-Net / Shipping: 11kg / 12.5kg
SKU: n/a -
스테레오앰프
DMP-950
-
- Stereo Mode: 8Ω (EIA/1kHz): 650W, 4Ω (EIA/1kHz): 950W (0.1% THD)
- Bridge Mode: 8Ω (EIA/1kHz): 1900W (0.1% THD)
- Total Harmonic Distortion (THD): 8Ω (1kHz, 50W): 0.0003%, 4Ω (1kHz, 100W): 0.005%
- Frequency Response: 20Hz ~ 50kHz (±0.5)
- Signal to Noise: >-105dB (20Hz ~ 20kHz)
- Damping Factor: 8Ω @ 20Hz~1kHz: >6000:1, 8Ω @ 10kHz: >1500:1
- Input Impedance: 20k Ohms, Balance
- Output Circuitry: 2-tier Class-H
- Cooling: 2 Variable speed DC FAN
- Controls: Front panel attenuator, Rear panel mode & Gain Switches
- Protection: Thermal, Turn-on bursts, Load protected against DC faults, Short circuit
- Connectors: Combination jack with 3 poles Female XLR socket + 1/4″ phone jack, Male XLR, Power-10A IEC Mains
<
SKU: n/a -
